HYH06

←Left
  • HYH06
    1/1HYH06
Right→

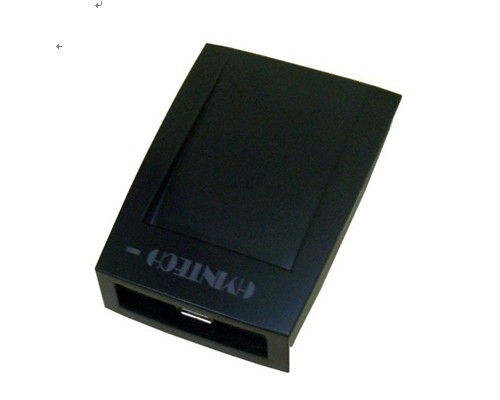

HYHR-H06 series desktop readers are smart modules without touching based on international standard agreement ISO14443A, ISO14443B and ISO15693.,is equipped with high capability chip, processor, security and electric monitor. The reader can communicate with PC by means of interface. It is of high capability, anti-jamming, small size and good quality, which brings more convenience.



        Hyintech Team
        Supply You Best Products,
        Free Detailed Manual and SDK
        Most Professional Technical Support
        Be Your Best Friend and Loyal Long Term Partner.

Model Number

HYH06A

HYH06B

HYH06C

Dimension

110x80x25mm

Standard

ISO14443A

ISO15693

ISO14443A

ISO14443B

ISO15693

Support

Mifare One S70
Mifare One UltraLight
Mifare One S50
Mifare Pro
AT88RF020
66CL160S

SR176
SRIX4K
TYPE-B

I-Code2
TI RFid Tag-it HF-I
EM4135
EM4034 etc.

Frequency

13.56MHz

speed

106kbit/s

Baud Rate

9600-115200 bit/s

Power Supply

+5V DC

Consumed Current

< 80mA

Operating Distance

50--70mm

Interface

RS232; USB; RJ45(Optional)

Status Indication

1pcs LED; 1pcd buzzer

Service Temperature

-10 ~ +70

Store Temperature

-20 ~ +80
