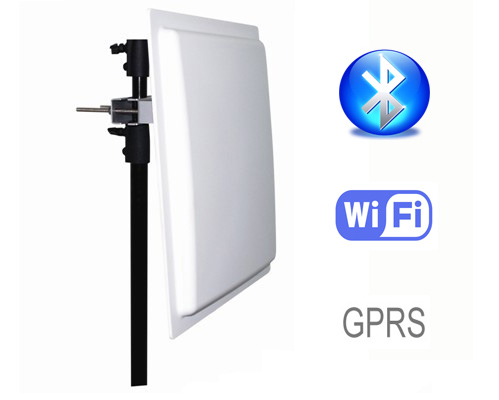

HYB615 (Version UHFReader06) is a high performance UHF RFID integrated reader&Writer. It is designed upon fully self-intellectual property. Based on proprietary efficient digital signal processing algorithm, it supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such as logistics, access control, anti-counterfeit and industrial production process control system.With Optional Interface GPRS/WIFI/BT.
Support ISO18000-6B, ISO18000-6C(EPC C1G2) protocol tag;
860~928MHz frequency band(frequency customization optional);
FHSS or Fix Frequency transmission;
RF output power up to 30dbm(adjustable);
12dbi antenna optional with Reading distance up to 15 meter;
Support auto-running, interactive and trigger-activating work mode;
Low power dissipation with single +9 DC power supply;
Support RS232, RS485, Wiegand interface;
l Absolute Maximum Rating
|
ITEM |
SYMBOL |
VALUE |
UNIT |
|
Power Supply |
VCC |
16 |
V |
|
Operating Temp. |
TOPR |
-10~+55 |
℃ |
|
Storage Temp. |
TSTR |
-20~+75 |
℃ |
l Electrical and Mechanical Specification
Under TA＝
|
ITEM |
SYMBOL |
MIN |
TYP |
MAX |
UNIT |
|
Power Supply |
VCC |
8 |
9 |
12 |
V |
|
Current Dissipation |
IC |
|
350 |
650 |
mA |
|
Frequency |
FREQ |
860 |
|
928 |
MHz |
|
Item |
Comment |
|
Red |
+9V |
|
Black |
GND |
|
Yellow |
Wiegand DATA0 |
|
Blue |
Wiegand DATA1 |
|
Purple |
RS485 R+ |
|
|
RS485 R- |
|
Brown |
GND |
|
White |
RS232 RXD |
|
Green |
RS232 TXD |
|
Grey |
Trigger input（TTL level） |
Hyintech UHF reader&writer HYB608&HYB615 is based on most durable industrial design,with stable performance,sustain for harsh enveiroment.
