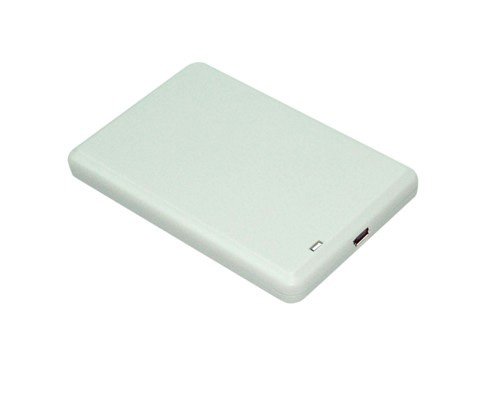

HYB505U(Version UHFReader06) is a high performance Multiple Protocol UHF RFID Reader. It is designed upon fully self-intellectual property. Based on proprietary efficient digital signal processing algorithm, it supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such as logistics, access control, attendance system, anti-counterfeit and industrial production process control system.
Support ISO18000-6B, ISO18000-6C(EPC C1G2) protocol tag;
860~928MHz frequency band(frequency customization optional);
FHSS or Fix Frequency transmission;
RF output power up to 10dbm(adjustable);
No external power source needed;
Built-in antenna with effect distance up to 200mm*;
Support USB1.1 interface with VSP(Virtual Serial Port) or HID mode;
Slim outline;

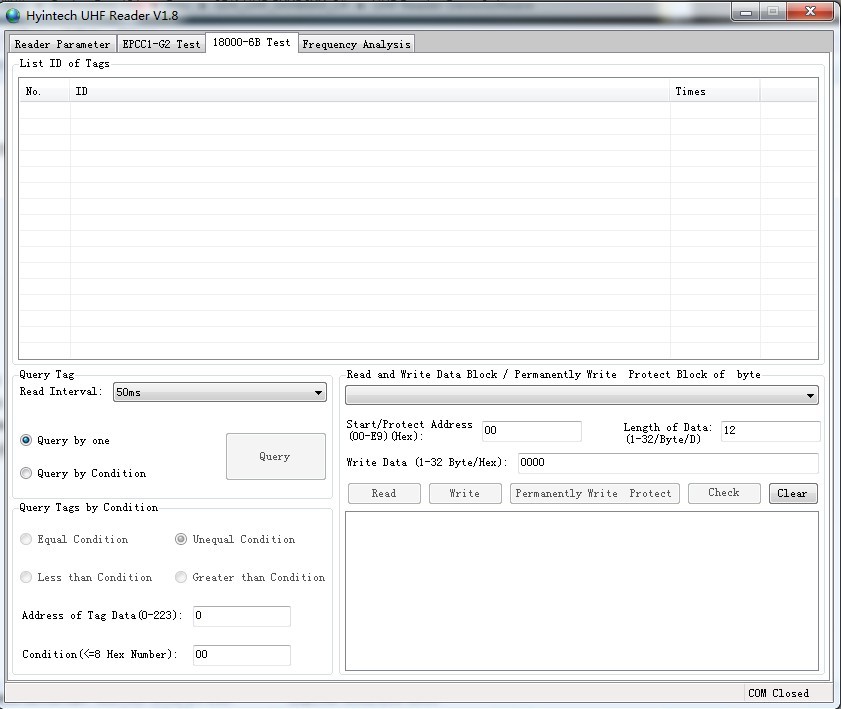

Provide SDK and demo software to facilitate further development.
l Absolute Maximum Rating
|
ITEM |
SYMBOL |
VALUE |
UNIT |
|
Power Supply |
VCC |
6 |
V |
|
Operating Temp. |
TOPR |
-10~+60 |
℃ |
|
Storage Temp. |
TSTR |
-25~+80 |
℃ |
l Electrical and Mechanical Specification
Under TA＝
|
ITEM |
SYMBOL |
MIN |
TYP |
MAX |
UNIT |
|
Power Supply |
VCC |
4.5 |
5 |
5.5 |
V |
|
Current Dissipation |
IC |
|
120 |
200 |
mA |
|
Frequency |
FREQ |
860 |
|
928 |
MHz |
|
Effective Distance* |
Dis |
0 |
100 |
200 |
mm |
