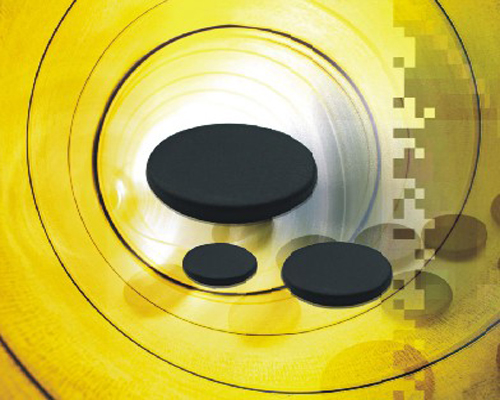

HYTSL30 Laundry tag has been specially designed for applications requiring a rugged transponder that can withstand harsh environment, this tag meets all requirements in terms of heat, vibration, pressure and chemical resistance as needed in application of RFID tracking of laundry industry.
Hyintech Team
Supply You Best Products,
Free Detailed Manual and SDK
Most Professional Technical Support
Be Your Best Friend and Loyal Long Term Partner.
Available dimensions:
9，10，11，12，13，14，15，16，17，18，20，22，24，26，28，30mm
Thickness: 2.5+/-0.3mm
IC available at 125KHz nominal
TK4100, EM4100, EM4102, EM4450, Hiatg1, Hitag2, HitagS256, HitagS2048, ATA5567
IC available at 13.56MHz nominal
Mifare1 S50, Mifare1 S70, Desfire MF3ICD41, Mifare Ultralight, Icode1, Icode Sli ,
Legic mim256, JWL872, TI256, TI2048, INSIDE picopass 2KS
IC available at 915MHz nominal: Gen2
Note: some ICs available with Dia13mm above only.
Operation temperature: -20 to 90 ℃
Extreme Rugged Storage Condition:
Temperature: -25℃ ~ + 120℃ for 1000 hours
+160℃ for 35 hours, +220℃ for 30 Seconds
Hyintech RFID Reader&Tags,make laundry management automation into a feasible and efficient way.
