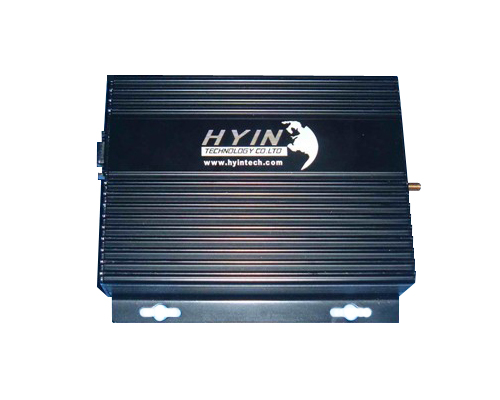

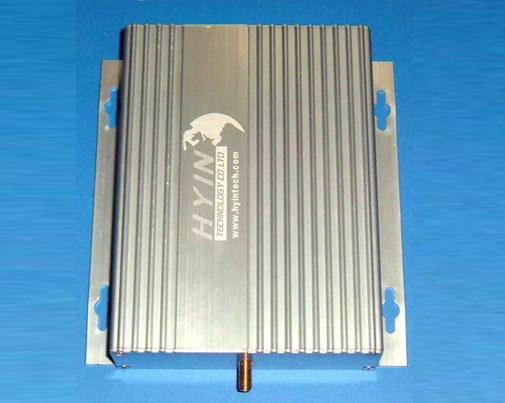

HYAR5D is a directional reader with the most advance technology, applying in wide alleyway,Loing distance, quick identification, meeting the special demand of identification, tracking and positioning among many tags simultaneously

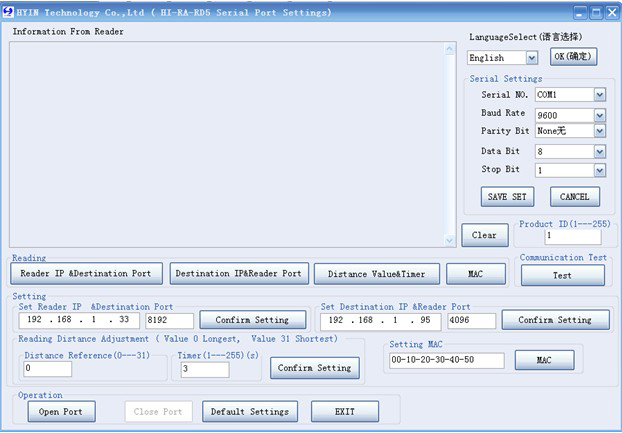

•  Maximum identification distance is 2 to 80 meters and can be easy adjusted by command through the computer at the scene.
•  Support identification of fast moving objects with speed up to 200 kilometers
•  Work at globally free 2.45GHz ISM band,125 channels, 8MHz channel bandwidth
•  Data rate is 1Mbps , adjustable RF power is -20dBm-0dBm ,max transmission power is 1mW
•  Communicate with other equipment through RS232/RS485/WEIGEN-26/TCP/IP/GPRS. Asynchronous communication rate 9600BPS-38400BPS(Please confirm your interface before order)
•  Communicate with computer through RS232/485/weigand 26 or wirelessly
•  Encrypted and certified to assure data safety, preventive of eavesdropping and intentional decoding
•  Applied channel isolation technology, no interferences between equipments
•  Advanced anti-collision techniques, Support multi-tags read and write
•  Customized microwave work modes, adjustable transmission power
•  Meet harsh industrial environment requirements,Applied design techniques of anti-interferences and thunders

Specification

Electric characteristics

Environment characteristics

Others
