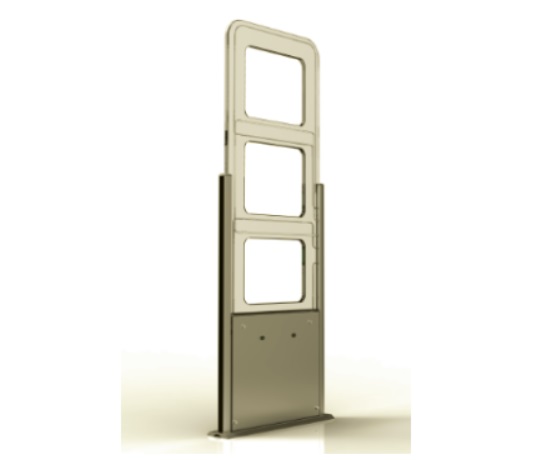

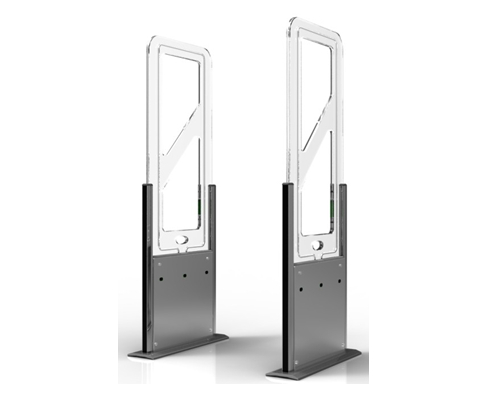

HYL50 Hyin Technology Co.,Ltd | HF(13.56MHZ) RFID

HYL50 is a high performance ISO15693 protocol HF tag channel device. Designed upon fully self-intellectual property, it supports fast tag anti-collision operation with high identification rate, 4 line infrared motion detection, real-time clock, extensional tag data storage and EAS function. It can be directly connected to host, controller and other relative equipments. It can be widely applied in many RFID application systems such as logistics, open channel conference attendance system, open access control and industrial production process control.

HF(13.56MHZ ISO15693) RFID Wireless Gate Reader

    Support mainstream ISO15693 protocol tag (TI, PHILIPS, ST,INFINEON, FUJITSU, EM…);
    Low power dissipation design with RF output power over 4Watt;
    Advanced anti-collision algorithm, high identification speed up to 50tags/s;
    Built-in TX/RX antenna and channel width up to 150CM;
    4 line infrared motion detection;
    Built-in real-time clock and about 30000 events storage capacity;
    Support RS232/RS485 and TCP/IP interface;
    Optional 2D/3D antenna mode supporting 2D/3D tag operation;

    Hyintech Team
    Supply You Best Products,
    Free Detailed Manual and SDK
    Most Professional Technical Support
    Be Your Best Friend and Loyal Long Term Partner.

ITEM	SYMBOL	VALUE	UNIT
Color		Transparent
Height¹	H	155.5/166.1-3D	cm
Width²	W	63.5/63.6-3D	cm
Thickness³	T	16/11.8-3D	cm
Weight⁴	WT	60	kg
Power Supply	VAC	220/50	V/Hz
Current.	IAC	90	mA

Could HYL50 Detect the Movement direction, like enter or exit ?

Answers

Yes, It could.

There is the Infra-detector, which could detect the movement direction. Could be used for counting and detecting of Exit and Entery.

What's the difference betweem Hyintech HF RFID Gate and other HF RFID Gate which look like the same.

Answers

Hyintech HF Wireless Gate reader HYL50 is based on high capablity circuit design, which could operation 365 days * 24 hours without

break.Devices could be running for years without any maintaince. During years of upgration, our deivce already be the most mature one with high sensitivity.Some of these device from other supplier, using the low cost element,the missing rate of detecting is high,expecially in liibrary Managment system.Not all the other RFID HF gate reader can be as durable as HYL50.

As for the shield, we are sourcing from the public shield market. Other supplier may sourcing from the same one. But circuit design are different.
