* Based On Impinj R2000
Support ISO18000-6C(EPC C1G2) , ISO18000-6B protocol tag;
860~868MHz/902~928MHz frequency band(frequency customization optional);
FHSS or Fix Frequency transmission;
RF output power up to 30dbm(adjustable);

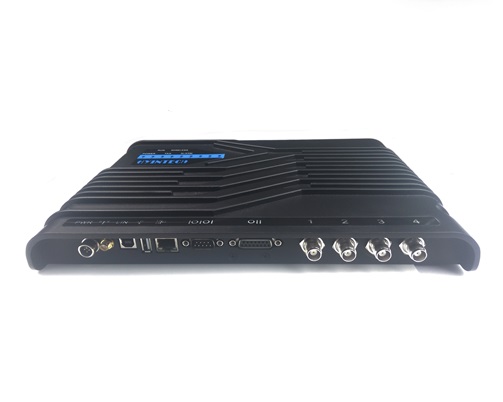

4 TNC antenna port with antenna auto-tuning and failure-detection;
* Support auto-running, answer, trigger and real-time-inventory work mode;
* Tag buffer size up to 800PCS (Max. 496bits EPC length);
Support EPC and TID inventory;
Low power dissipation with single +9 DC power supply;
* Support RS232, RS485, RJ45(TCPIP) with WiFi and POE optional;
* High reliability design;
Support on-the-site firmware upgrading and optional Wince or Linux Operation System.
GENERAL DESCRIPTION

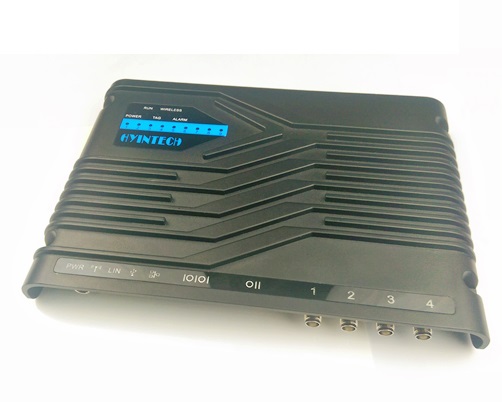

HYV904 is a high performance UHF RFID fixed reader. It is designed upon fully self-intellectual property. Based on Patented efficient digital signal processing algorithm, it supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such as logistics, access control, anti-counterfeit and industrial production process control system.
CHARACTERISTICS
l Absolute Maximum Rating
| ITEM |
SYMBOL |
VALUE |
UNIT |
| Power Supply |
VCC |
16 |
V |
| Operating Temp. |
TOPR |
-10~+60 |
℃ |
| Storage Temp. |
TSTR |
-20~+75 |
℃ |
l Electrical and Mechanical Specification
Under TA＝
| ITEM |
SYMBOL |
MIN |
TYP |
MAX |
UNIT |
| Power Supply |
VCC |
8 |
9 |
12 |
V |
| Current Dissipation |
IC |
|
800 |
1500 |
mA |
| Frequency |
FREQ |
902 |
902~928 |
928 |
MHz |
| Size |
Size |
|
310×210×41 |
|
mm |
