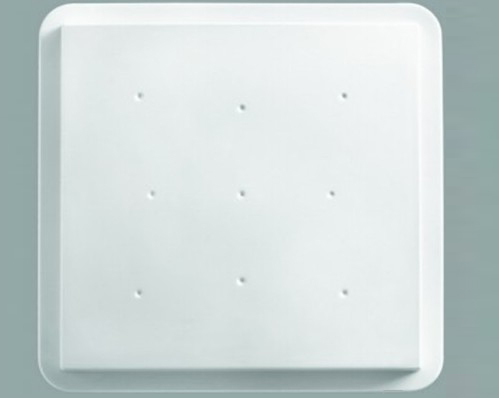

      UHF RFID 8 DBI Antenaa for HYB804 Reader&Writer

      Accurate frequency
      Sensitive design
      Long reading distance
      High Gain


      Hyintech Team
      Supply You Best Products,
      Free Detailed Manual and SDK
      Most Professional Technical Support
      Be Your Best Friend and Loyal Long Term Partner.

Model No.

HYUA8

Frequency Range

ISM 902~928MHz

ISM 865~868MHz

Gain

8 DBI

Front-back

>25dB

Polarization

Round

Impedance (Ω)

50

VSWR

<1.2

Maximum Input Power (W)

500

Connector

SMA/N

IM.3rd Order(2x43dBm)

<-150dBc

Lightning Protection

Direct Ground

Dimensions

260*260*45

Weight

1kg

Radome Material

ABS/Glass fibre

Bracket Weight

0.5kg

Rated Wind Velocity

120 km/h

 Working Temp

-40℃~70℃
  • Anti-thief UHF RFID Animal Management
    Anti-thief UHF RFID Animal Management
     For animal anti-thief, Hyintech HY3800WU,HYB804 Reader& HYTSA8070 Tags provide a more efficient way with the ourstanding feature of products. They could be your most trustful guard and manager.
  • Long distance UHF RFID Animal Management
    Long distance UHF RFID Animal Management
    HY3800WU,HYB804,designed for harsh enviroment,is with capability of reading tags above 200 pieces at the same time at long distance.
  • UHF RFID Production&Inventory Management
    UHF RFID Production&Inventory Management
    Hyintech RFID Reader&Writer HY3800WU,HYB804,HYUT7323 Tags,make inventory management into a more efficient way.It could save you a a lot of human labour.
