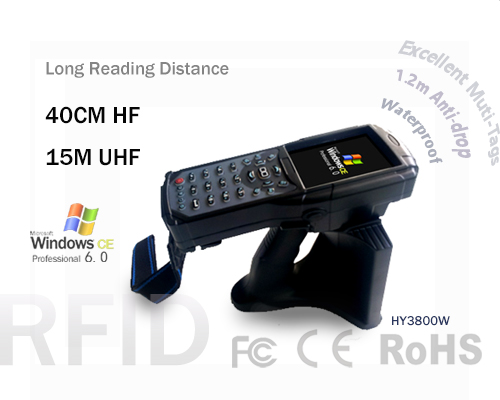

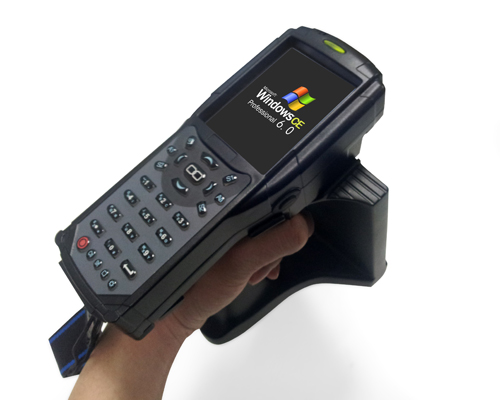

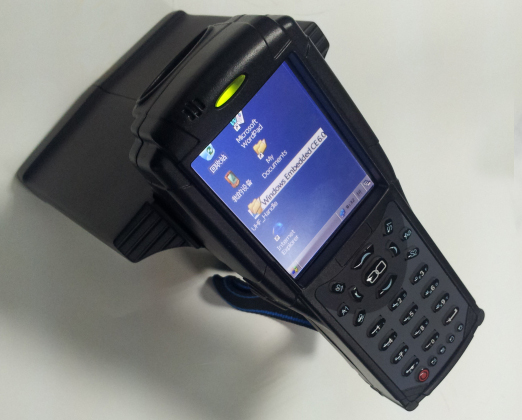

HY3800W Hyin Technology Co.,Ltd

1 Compact structure design, multi internal plastic buffer, sustain 1. 2 meters drop, Water proof, IP65 Industrial Standard

2 Super Power Battery 7.4V,2500MAH/3.7V,5000MAH, Long Working Time. Sustain consecutive Working above 20 hours (depends on specific situation), 10 days standby. Extended battery life.

3 Stable PXA3XX CPU，efficiency data processing

4 Readable under sun-shine 3.5 inch LCD

5 Multi-Thread WinCE 6.0 R3 System

6 Hardware extendable functions

7 High capability Barcode scanner(optional) engine, Designed for 10 years using.

8 Sensitive RFID （LF/HF/UHF） Module

9 Wifi ( Standard), GPRS/3G(optional),GPS/Optional, Camera/Optional

10 Wireless Charging（Optional）

11 Support further software development, SDK(Software Development Kit ) Provided

CPU		PXA3XX (624MHZ)
OS		Windows CE 6.0 R3 (Language Customizable)
Memory	RAM	128MB
Memory	F-ROM	128MB/256MB
Barcode Scan engine	Scanner	1D Laser Barcode Scanner
	Module	Opticon /Moto
	Scan Speed	100 times per second +-2 times
	Scan Distance	60-650mm
	Angle	54±5
	Width	60-360mm At Max Reading Distance
	Resolution	0.127-1.00mm
	Code	UPC-A; UPC-E; UPC-E1; EAN-8; EAN-13; Bookland EAN; Code 128; UCC/EAN-128; Code 39; Trioptic Code 39; Code 39 Full ASCII; Code 93; Code 11; Interleaved 2 of 5; Discrete 2 of 5; Codabar; MSI; GS1 DataBar 14; GS1 DataBar Limited; GS1 DataBar Expanded;
RFID	LF 125KHZ	Max Reading 10cm
	LF 134.2KHZ	Max Reading 10cm
	HF 13.56MHZ	Max Reading 35cm
	UHF 860-928M	Max Reading 1000cm
LCD	Type	TFT-LED QVGA Touch Screen
	Resolution	QVGA（240X320）Readable Under Sun Shine
	Size	3.5 inch
Input	Soft Keyboard	English, Chinese Input(Multi Language Customizable)
	Hard Keyboard	30 Key
	ScanKey	At the Middle
Function Modules	Standard	WPA 802.11i(WPA2),WEP,TKIP,TLS,TTLS,AES,PEAP,MD5
	Optional	BT V2.1+EDR
	Optional	Internal 3M camera
	Optional	Internal GPS Signal 48,Accuration 2.5m，Speed below 0.01m/s
	Optional	Internal LF/HF/UHF RFID Reader
	Optional	Internal GPRS/3G WCDMA
Power	Main Power	7.4V,2500mah/3.7V 5000mah Li-ion
	RTC Battery	Chargeable Button battery
	Standby	10 days
	Working	Above 20 hours, depends on specific situation
Extension		Micro SD/TF Slot
Industrial Standard		IP65
Size	Human Engineering Design	190(L)×78(W)×40(T) mm
Weight		430g( Including Battery)
Working Environment	Operation Temp.	-15~+50℃
	Storable Temp.	-20~+60℃
	Working Wet	5-95%
	Storage Wet	5-95%
	Anti-Drop	50 inch(1.2Meters)Multi Drop
