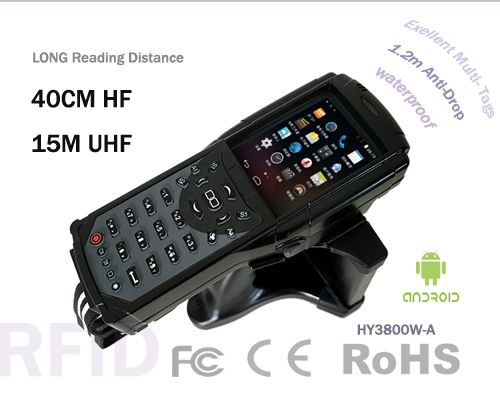

HY3800W-A Hyin Technology Co.,Ltd

1 Compact structure design, multi internal plastic buffer, sustain 1. 2 meters drop, Water proof, IP65 Industrial Standard

2 Super Power Battery 7.4V,2500MAH/3.7V,5000MAH, Long Working Time. Sustain consecutive Working above 20 hours (depends on specific situation), 10 days standby. Extended battery life.

3 Efficiency and power saving 1.2GHZ CPU System ,Long working time

4 Readable under sun-shine 3.5 inch LCD

5 Android System

6 Hardware extendable functions

7 High capability Barcode scanner (optional) engine, Designed for 10 years using.

8 Sensitive RFID （LF/HF/UHF） Module

9 Wifi &BT( Standard), GPRS/3G(optional),GPS/Optional, Camera/Optional

10 Wireless Charging（Optional）

11 Support further software development, SDK(Software Development Kit ) Provided

CPU		1.2 GHZ Due Core
OS		Android 4.4
Memory	RAM	1GB
Memory	F-ROM	4GB
Barcode Scan engine	Scanner	1D /2D Laser Barcode Scanner
	Module	Opticon /Moto
	Scan Speed	100 times per second +-2 times
	Scan Distance	60-650mm
	Angle	54±5
	Width	60-360mm At Max Reading Distance
	Resolution	0.127-1.00mm
	Code	UPC-A; UPC-E; UPC-E1; EAN-8; EAN-13; Bookland EAN; Code 128; UCC/EAN-128; Code 39; Trioptic Code 39; Code 39 Full ASCII; Code 93; Code 11; Interleaved 2 of 5; Discrete 2 of 5; Codabar; MSI; GS1 DataBar 14; GS1 DataBar Limited; GS1 DataBar Expanded;
RFID	LF 125KHZ	Max Reading10cm
	LF 134.2KHZ	Max Reading 40cm
	HF 13.56MHZ	Max Reading 40cm
	UHF 860-928M	Max Reading above 15Meter
LCD	Type	TFT-LED QVGA Touch Screen
	Resolution	QVGA（240X320）Readable Under Sun Shine
	Size	3.5 inch
Input	Soft Keyboard	English, Chinese Input(Multi Language Customizable)
	Hard Keyboard	30 Key
	ScanKey	At the Middle
Function Modules	Standard	WPA 802.11i(WPA2),WEP,TKIP,TLS,TTLS,AES,PEAP,MD5
	Standard	BT V3.0
	Optional	Internal 3M camera
	Optional	Internal GPS Signal 48,Accuration 2.5m，Speed below 0.01m/s
	Optional	Internal LF/HF/UHF RFID Reader
	Optional	Internal GPRS/3G WCDMA
Power	Main Power	7.4V,2600mah/3.7V 5200mah Li-ion
	RTC Battery	Button battery
	Standby	10 days
	Working	Above 10 hours, depends on specific situation
Extension		Micro SD/TF Slot
Industrial Standard		IP54
Size	Human Engineering Design	190(L)×78(W)×40(T) mm
Weight		650g( Including Battery)
Working Environment	Operation Temp.	-15~+50℃
	Storable Temp.	-20~+60℃
	Working Wet	5-95%
	Storage Wet	5-95%
	Anti-Drop	50 inch(1.2Meters)Multi Drop
